High Performance Carbide Drills

Rohit Cutting Tools India manufactures High Performance Carbide Drills to machine materials like Alloy Steel, Cast Iron. Stainless Steel, Titanium & Nickel Alloys & other harder to machine materials. You can go through our Drilling Case Studies by following link here for drilling applications

High Performance Carbide Drills

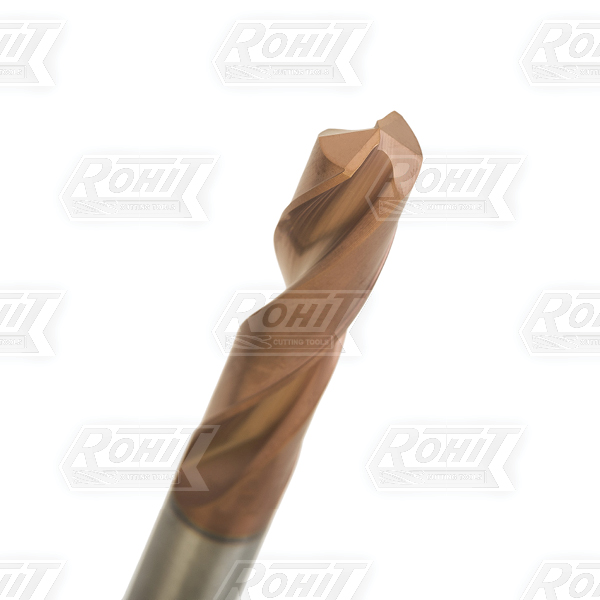

  • C3HS Carbide Drills series meant for drilling in 3 L/D to 5 L/D hole depths : Our testing results shows that C3HS Carbide Drills Series can reduce Tooling cost per component (CPC) by at least 30-50% in your CNC Drilling applications. For Test Results you can view Case Studies on our High Performance Carbide Drills below.
  • C3HL Carbide Drills series meant for drilling in deeper hole depths i.e. 5 L/D to 8 L/D ; We provide Solid Carbide Drilling up to L/D of 15 to provide you best quality drills to solve your Most Difficult Drilling problems.

Features of High Performance Solid Carbide Drills

  • Carbide Drills' Superior Flute Form + Design + Honing clubbed with UMG (Ultra Fine carbide grain size) results in Peak Performance for your Carbide Drilling applications in most difficult to drill materials.
  • Our Carbide Drills comes with Newly developed NOVA coating or PEROX coating
  • Works at faster feed & speed rates then ever before,
  • Improves productivity & achieves unmatched Life

Contact Us Today to reduce your Drilling costs with our new C3HS, CTHS series Solid Carbide Drills.

More details

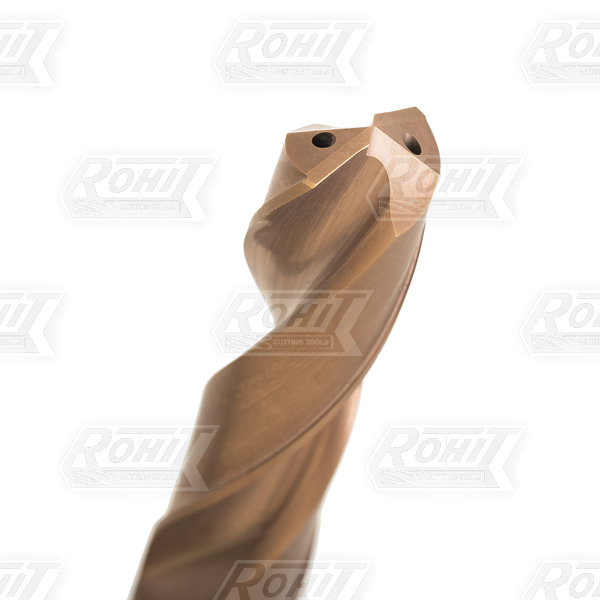

Coolant Fed Carbide Drills

RIGPL manufactures Coolant Fed Carbide Drills or also known as Through coolant Carbide Drills; as the name suggests these Carbide Drills comes with the 2 or 3 Helical Coolant holes depending upon customer request.


  • RIGPL's Carbide Coolant Fed Carbide Drills is only available drilling Solution to all type of Drilling problems like intermittent, deep-hole, blind hole & other type of drilling applications.
  • Carbide Coolant Fed Drills will increase your productivity to new level while drilling in CI upto 400BHN, Alloy steel, SS, Titanium, Nickel Alloys & other difficult to machine materials,
  • Carbide Drills comes with Super Finish on the surface for smoother chip evacuation,
  • Smoother & tighter tolerances holes are achieved,
  • Reaming is minimized with the stiffer tolerances are achieved with RIGPL's Coolant Fed Carbide Drills.

More details

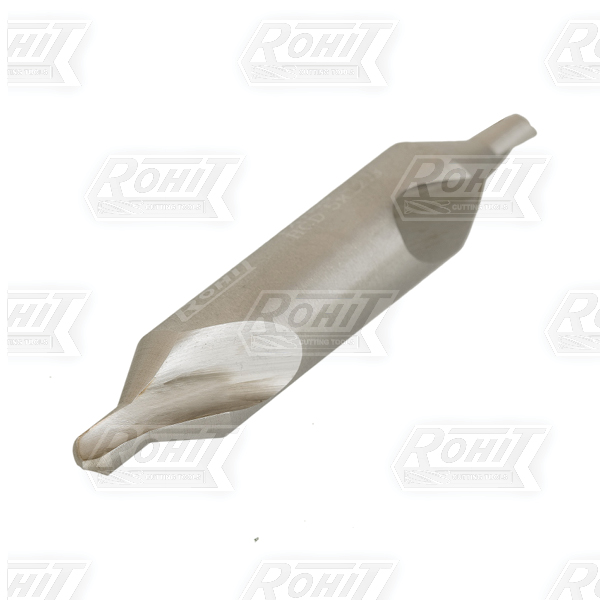

Carbide Center Drill

RIGPL manufacturers & exports Carbide Centre Drills A-Type with following salient features:
  • Manufactured in both BS328 & DIN333 standards,
  • Coating also available on request,
  • Made from Micro-Fine Carbide Grade,
  • Carbide Center Drills comes with 118* Point angle
  • Carbide Center Drills comes with varied chamfer angles of 45* / 60* or as per customer request or drawings


  • RIGPL make center drills are used in Automotive, Aerospace & other manufacturing industry
  • Center Drills are used for providing centering holes on shafts faces, so to hold them between centers for other CNC job work.

More details

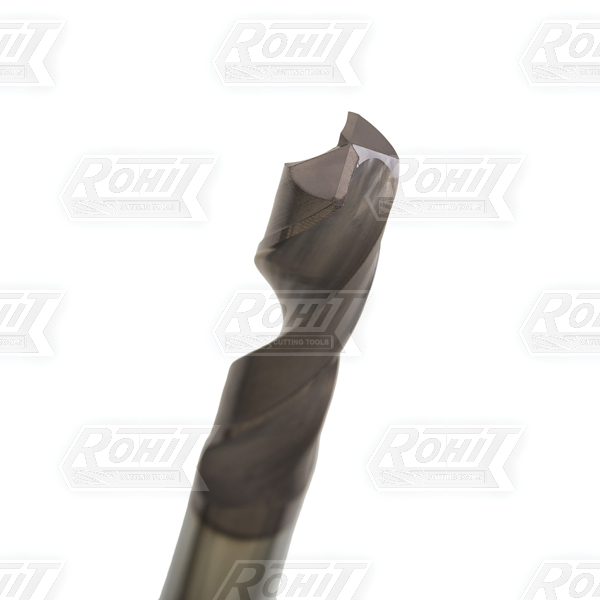

General Purpose Carbide Drills

RIGPL manufacturers Carbide Drills for General purpose (GP) Drilling applications.

GP Carbide Drills Series available with RIGPL
  • C1GS series is Carbide Drills Stub length series as per BS 328
  • C1GJ series is Carbide Drills Jobber Length series as per DIN 338
  • For difficult to drill materials like Alloy Steel, SS, Titanium, Nickel Alloys we recommend High Performance Carbide Drill Series
  • For higher production rates & for production jobs we recommend High Performance Carbide Drill series

More details
