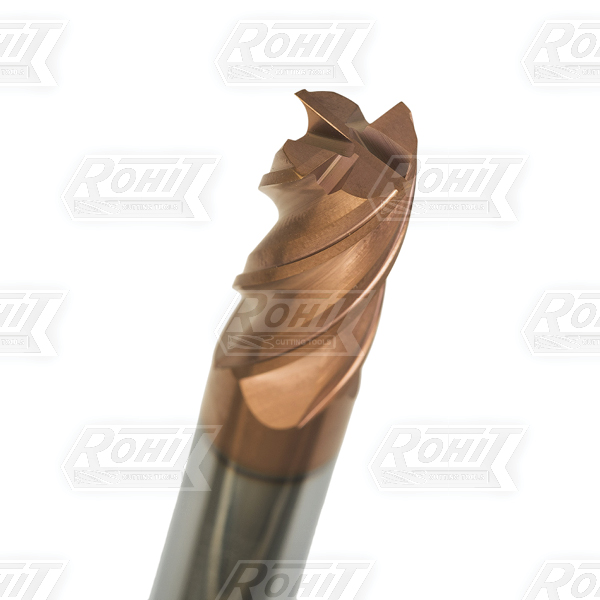

301-4-Flute-HP-Solid Carbide Flat End Mills upto 60HRc machining -Metric

Description
  • High Performance Carbide End Mills for Die-Mold Application for running at elevated parameters
  • Solid Carbide Flat End Mills for milling up to 60-HRc hardened die steel and tool steel like D2, D3, H13, P20, etc.
  • Performs better than 205 series (TX series) of Carbide End Mills
  • 4-Flute Carbide Cutting Tools comes with newly developed NOVA coating

Item Variants

Item Code Flute Dia (mm) Flute Length (mm) Shank Dia (mm) Overall Length (mm)
CR33HSE003A3 3 15 3 50

CR33HSE003C9 3 20 3 75

CR33HSE003D6 4 14 4 50

CR33HSE003F2 4 20 4 75

CR33HSE003G0 5 16 5 50

CR33HSE003H8 5 20 5 75

CR33HSE003J3 6 16 6 50

CR33HSE003K1 6 25 6 75

CR33HSE003L9 6 30 6 100

CR33HSE003M7 8 20 8 60

CR33HSE003N4 8 25 8 75

CR33HSE003R6 10 25 10 75

CR33HSE003S3 10 40 10 100

CR33HSE003T1 10 60 10 150

CR33HSE003U9 12 40 12 100

CR33HSE003V7 12 60 12 150

CR33HSE003X2 16 40 16 100

CR33HSE00BV2 2 4 3 38

CR33HSE00BW0 2 4 3 50

CR33HSE00BX7 2.5 4 3 38

CR33HSE00BY5 2.5 5 3 50

CR33HSE00BZ3 3 5 3 38

CR33HSE00C12 3 6 3 75

CR33HSE00C20 3 6 3 100

CR33HSE00C38 4 8 4 50

CR33HSE00C46 4 8 4 75

CR33HSE00C53 4 8 4 100

CR33HSE00C79 5 10 5 50

CR33HSE00C87 5 10 5 75

CR33HSE00C95 5 10 5 100

CR33HSE00CB5 6 12 6 50

CR33HSE00CC3 6 12 6 75

CR33HSE00CD0 6 12 6 100

CR33HSE00CE8 6 12 6 150

CR33HSE00CH2 8 16 8 75

CR33HSE00CJ7 8 16 8 100

CR33HSE00CK5 8 16 8 150

CR33HSE00CL3 10 20 10 75

CR33HSE00CM1 10 20 10 100

CR33HSE00CN8 10 20 10 150

CR33HSE00CP4 12 25 12 75

CR33HSE00CQ2 12 25 12 100

CR33HSE00CR0 12 25 12 150

CR33HSE00FN5 4 25 4 100

CR33HSE00FY1 3 25 3 100

CR33HSE00G59 8 30 8 100

CR33HSE00HH7 5 25 5 100
